Pre-Engineered TVAC Platforms
Standardised thermal vacuum chamber platforms with modular configurations and repeatable performance for aerospace qualification, environmental simulation, and research testing.
T Series TVAC
Compact cubic thermal vacuum chamber platforms designed for repeatable environmental simulation, subsystem validation, and laboratory workflows. The T Series combines controlled thermal and vacuum conditions with a standardised architecture for research and qualification applications.
Its cubic geometry provides a flat base plate and maximized usable floor area — ideal for fixtures, optical benches, and fast integration of planar-mounted hardware. Standard configurations support vacuum performance down to < 1 × 10⁻⁶ mbar and thermal operation down to −190 °C, depending on the selected system setup.
Cubic Geometry
Cube-based chamber layout for straightforward payload access, efficient internal volume usage, and flexible fixture integration.
Low Temperature Capability
Configured for thermal operation down to −190 °C, depending on system configuration and test setup.
Ultimate Vacuum
Designed for vacuum performance down to < 1 × 10⁻⁶ mbar, depending on chamber size and pumping package.
Control Integration
Pre-engineered control system interface with data acquisition and automation support.

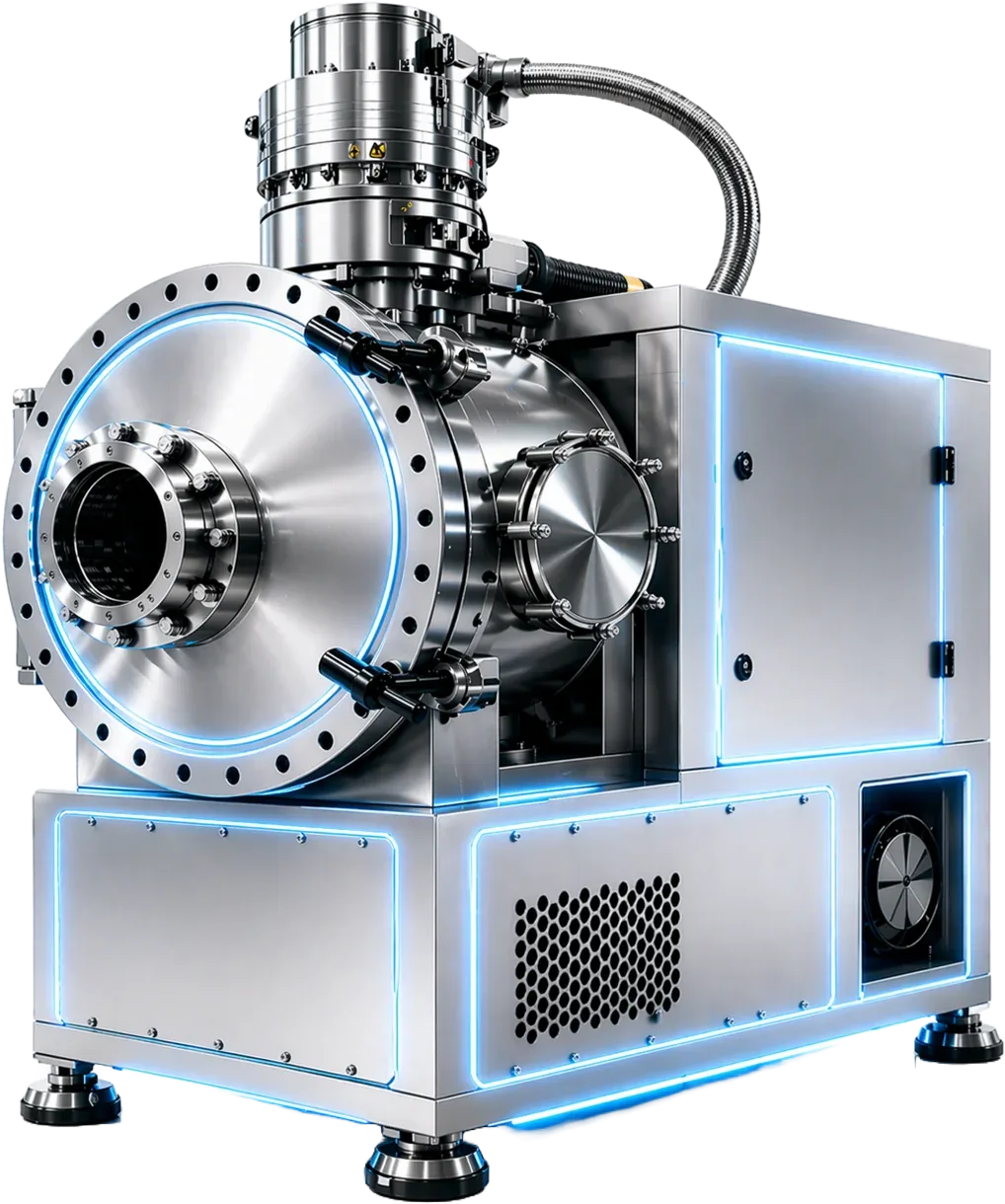

C Series TVAC
Cylindrical thermal vacuum chamber platforms designed for repeatable environmental simulation, subsystem qualification, and robust laboratory operation. The C Series combines controlled thermal and vacuum conditions with a standardised architecture for research and qualification applications.
Its cylindrical geometry provides an inherently pressure-stable vessel with efficient, homogeneous shroud coverage — ideal for larger volumes and radiative thermal balance testing. Standard configurations support vacuum performance down to < 1 × 10⁻⁶ mbar and thermal operation down to −190 °C, depending on the selected system setup.
Cylindrical Geometry
Cylindrical chamber layout suited for uniform radial design, efficient shroud integration, and classic vacuum chamber configurations.
Low Temperature Capability
Configured for thermal operation down to −190 °C, depending on system configuration and test setup.
Ultimate Vacuum
Designed for vacuum performance down to < 1 × 10⁻⁶ mbar, depending on chamber size and pumping package.
Control Integration
Pre-engineered control system interface with data acquisition and automation support.
Sizes & Key Specifications at a Glance
Six standard sizes, one system architecture — valid for the T-Series (cubic) and C-Series (cylindrical). Binding values per configuration in the catalog and quotation.
| Nominal volume (L) | 65 | 125 | 250 | 500 | 1000 | 2000 |
|---|---|---|---|---|---|---|
| Turbomolecular pump pumping speed (L/s, nominal) | 300 | 450 | 500 | 900 | 1200 | 2200 |
| Backing pump pumping speed (m³/h, nominal) | 16 | 16 | 25 | 40 | 63 | 100 |
Characteristics Shared Across All Sizes
- Working pressure
- ≤ 1 × 10⁻⁶ mbar
- Temperature uniformity
- ± 2 K
- Temperature stability (steady-state)
- ± 0.5 K
- Temperature change rate
- ≥ 1 K/min (heating & cooling)
- Temperature sensing
- Pt100
- Control system
- Freely programmable PLC, 7" touch panel, 0.1 °C setpoint resolution
- Data logging & export
- USB storage, export as CSV / TXT / XLS, PC control
- Chamber material
- AISI 304 stainless steel, polished interior
- Process ports (standard)
- ISO-K 100 or ISO-K 160, further flanges on request
Temperature Range by Cooling Concept (Thermal Plate)
- Direct LN₂ injection with surface-mounted heaters
- −180 °C to +150 °C
- GN₂ closed-circuit circulation
- −180 °C to +150 °C
- Mechanical cooling
- −70 °C to +125 °C
- Flooded LN₂ heat exchanger (two-phase boiling mode)
- down to approx. −190 °C
Thermal Vision
In-situ thermographic observation of the test article during TVAC testing — available as an add-on for standard and custom chambers.
Designed for Demanding Test Environments
Standard Series platforms serve a wide range of aerospace, research, and industrial test applications.
Need a Custom Configuration?
When test requirements exceed the standard platform scope, including non-standard geometries, specialised feedthrough configurations, application-specific thermal profiles, volumes below and above the standard series, or ultimate pressures down to the 10⁻⁷ mbar range, Deepvac offers fully custom-engineered TVAC solutions.

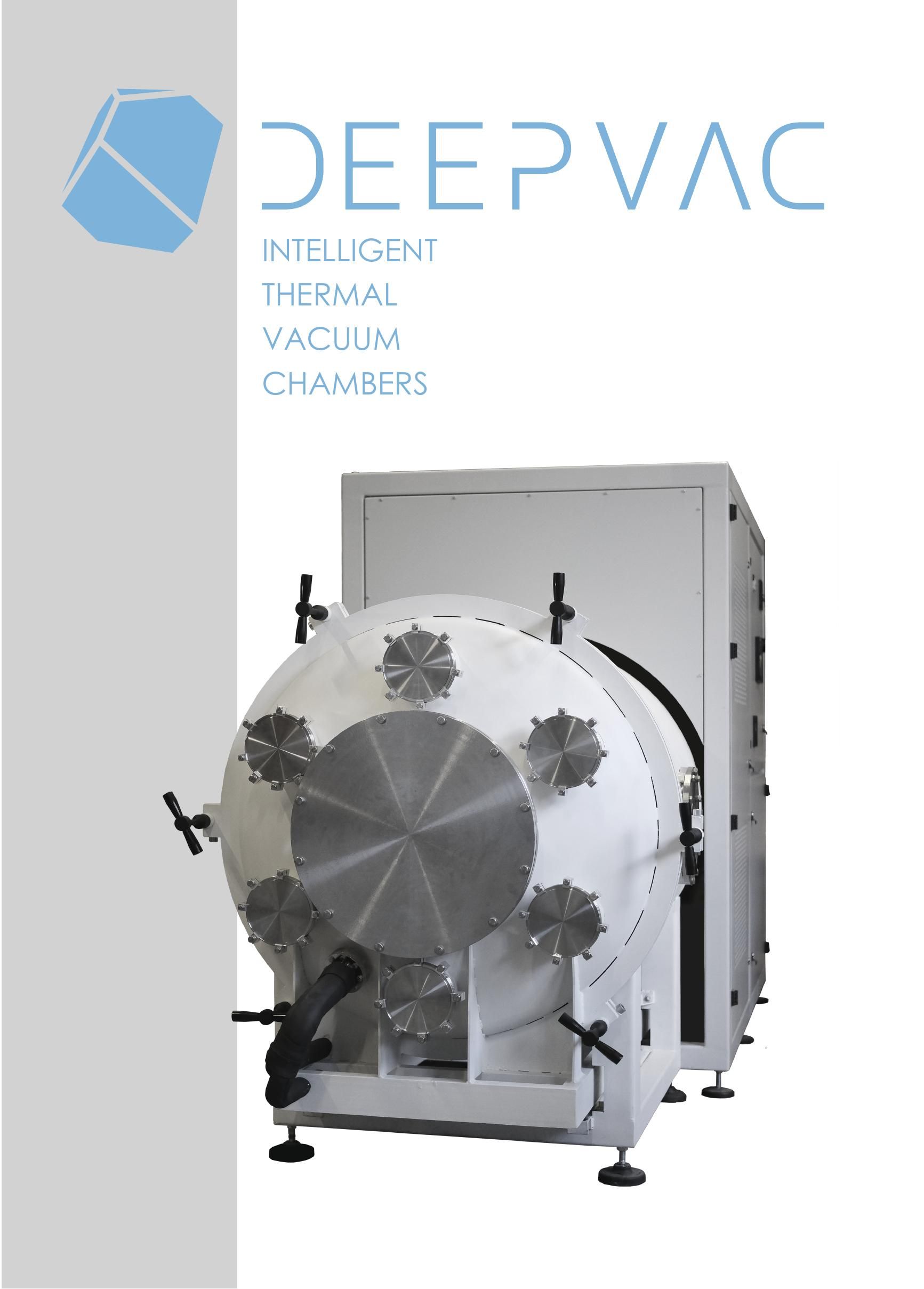

Deepvac Standard Series Catalogue
